FULLY CUSTOMISABLE
MECHANIC-DESIGNED
RACE-READY
What is the Aix?
Australia’s best carbon gravel bike — a fully customisable lightweight gravel grinder designed for high-performance riders who demand speed, durability and style.
Every Aix is sacred
It’s light, sleek and fast. It’s aesthetically beautiful.
But what really sets it apart is that the Aix can be created almost any way you want it.
Shimano Di2 devotee? Let’s build it.
More of a SRAM fan? You got it.
Want to run 700c front and 650b rear? Sure thing.
Dying for a particular colour combo? Can do.
Your options are almost limitless to design your dream build, whether understated or eye-catching.
Built for speed, designed for excellence, the Aix is a lightweight gravel bike for those who expect their ride to work as hard as they do.
Turn heads. Destroy your friends’ PBs.
The Aix does it all.
Key Features
Each bike is built to suit its owner.
Every aspect from fit and riding ambitions to favourite colour is considered.
Go for a classic two-way colour scheme, or go crazy with a fully custom paint job.
Your wish is our command.
Run 700c, 650b, run ’em both at the same time.
It’s your bike, it’s your call.
Exceptional power transfer and acceleration from our carbon gravel frame means you get race-ready stiffness with the weight advantage of a premium lightweight gravel bike.
No ultra-twitchy race feel.
No sluggish trail drag.
‘Cause they both suuuuck.
Greater reliability – no clicks or creaks to drive you (or your riding pack) up the wall.
Ergo, you’ll never be That Person with the ‘tick! tick! tick!’ bike. Congrats.
Why is the Aix different to mass-market gravel bikes?
Gothic Cycles’ bikes are created from a mechanic’s perspective — sleek aesthetics, smart geometry, and built to perform.
Even better, each bike is made to order.
No cookie-cutter builds.
No mass-market compromises.
Sure, you could whack down $15K+ for a regular carbon gravel bike.
But we think you deserve something better, for less.
Fully Customisable
The Aix is unique… literally.
Each bike is custom-built for its owner, right down to the paint.

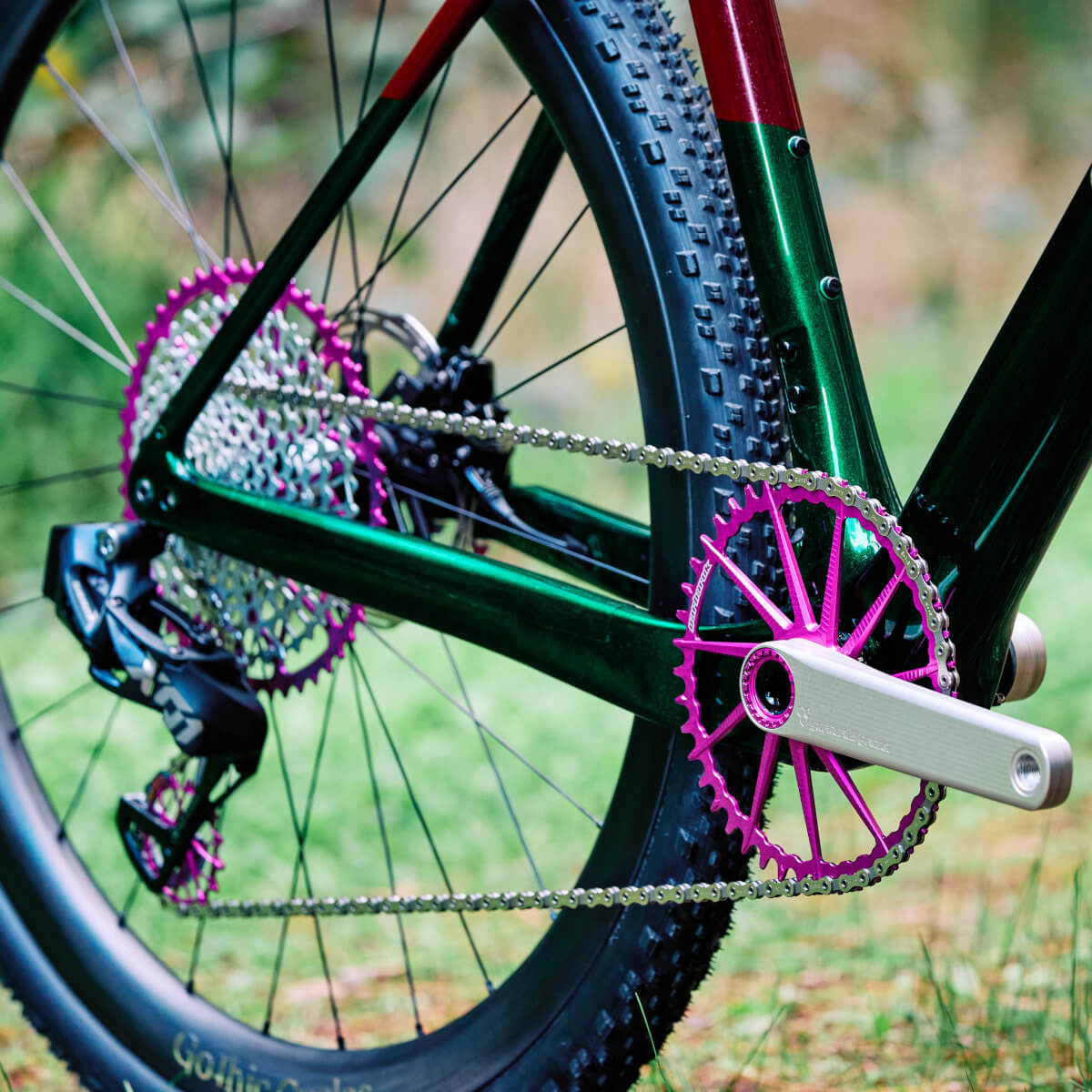

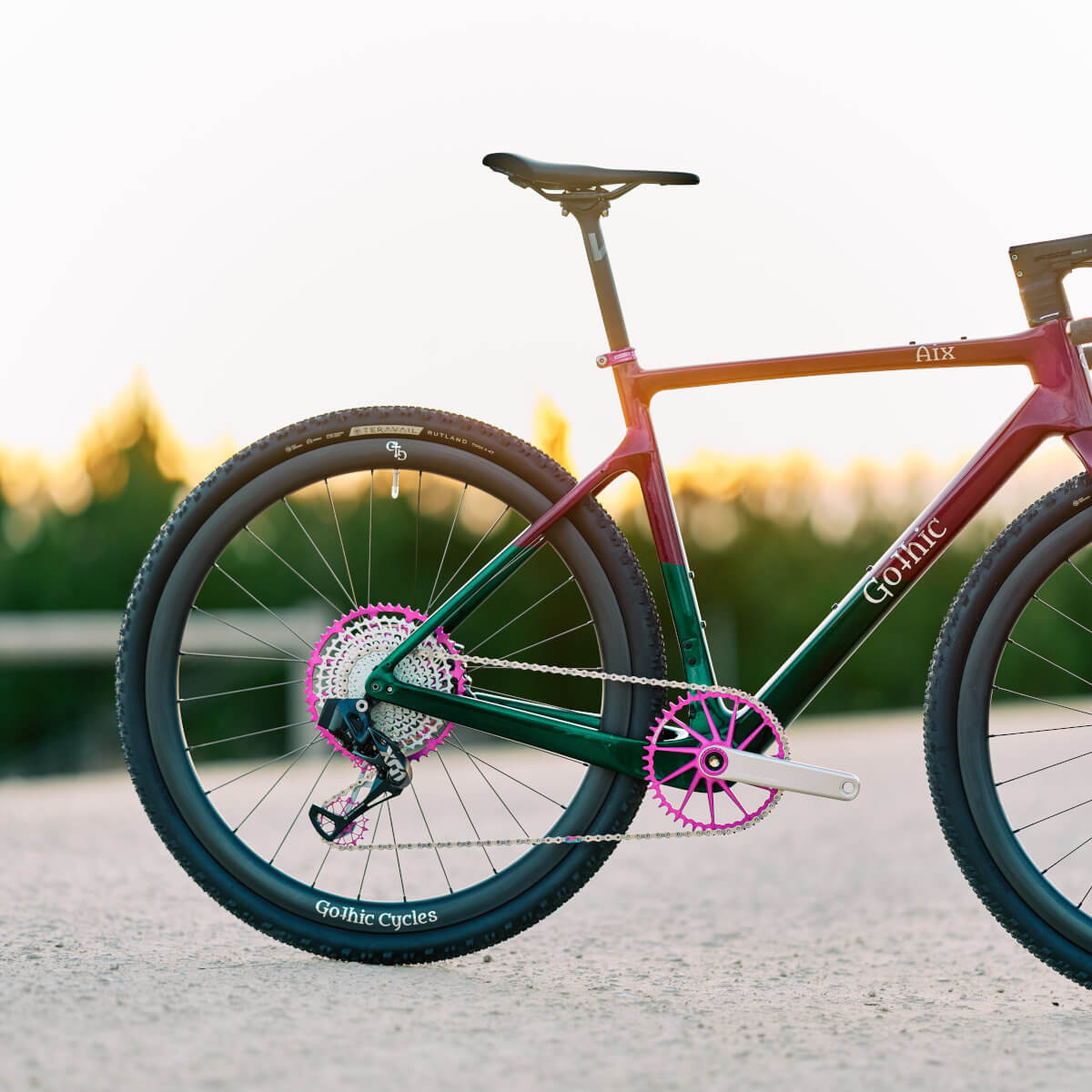

Want a sleek, wireless SRAM setup? Done. Garbaruk in full technicolour glory? You got it. Custom paint? It’s yours.
Surprisingly Affordable
The Aix is a performance bike without the premium price tag.
Each bike is custom-made and hand-detailed, without the exorbitant costs that other brands stick you with.
After all, why should you pay for someone else’s bloated marketing department?
Geometry that Works
The Aix is agile and responsive.
You can race it, but it doesn’t have the twitchy handling of a pure race bike.
It’s also torsionally stiff, meaning it won’t twist under load, so you’re not wasting energy when you put the power down.

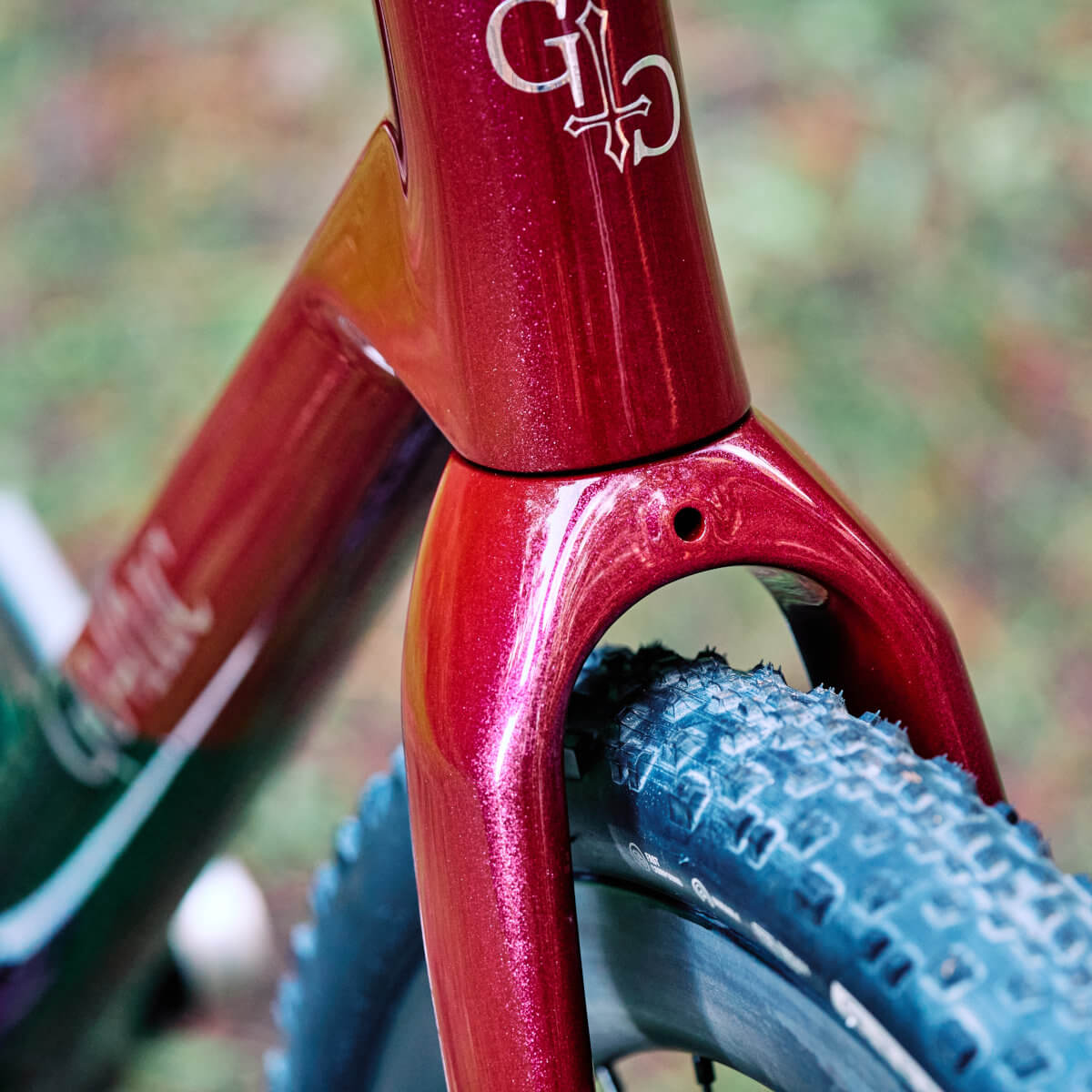

The Right Tyre Clearance
With clearance up to 50c front/45c rear on 700C and 2.1″ on 27.5, the Aix gives you versatility and grip without morphing into a monster-truck gravel bike.
(If your tyres are bigger than your ambitions, you’re basically on a mountain bike.)
Born to Ride
Yup, it’s carbon, but it’s not delicate.
The Aix is designed to be ridden hard, not just look cute. (Though it is very pretty.)
This is a bike created for the real world, and real riding conditions.
No Proprietary Gimmicks
The Aix is blissfully free from weird proprietary parts or built-in suspension designs that cause more problems than they solve.
This means no surprises, no chasing obscure spares at 2 am on random forums, and no this-tiny-bit-is-broken-so-you-now-need-a-whole-new-bike.
Aix Frame Geometry
| Size | Small / 52 | Medium / 54 | Large / 56 | XL / 58 | XXL / 60 |
|---|---|---|---|---|---|
| Reach | 376 | 380 | 388 | 401 | 408 |
| Stack | 515 | 540 | 564 | 586 | 611 |
| Effective Top Tube | 519 | 535 | 555 | 580 | 595 |
| Seat Tube Length | 480 | 510 | 530 | 550 | 570 |
| Head Tube Length | 94 | 120 | 142 | 165 | 189 |
| Head Angle (°) | 70 | 70 | 71 | 71 | 71 |
| Seat Angle (°) | 74.5 | 74 | 73.5 | 73 | 73 |
| BB Drop | 72 | 72 | 72 | 72 | 72 |
| Fork Length | 398 | 398 | 398 | 398 | 398 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Front Centre | 596 | 608 | 615 | 635 | 651 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1021 | 1034 | 1040 | 1061 | 1076 |
| Standover* | 760 | 785 | 808 | 832 | 855 |
| Tyre Clearance** | 700×45 | 700×45 | 700×45 | 700×45 | 700×45 |
| Frame Weight (g) | 1100 | 1120 | 1150 | 1170 | 1190 |
| Fork Weight (g) | 490 | 490 | 490 | 490 | 490 |
| Suggested Rider Height (cm) | 162–168 | 169–175 | 175–182 | 182–188 | 188+ |
* Based on 700×40c tyre
** Clearance will vary depending on tread design, manufacturer casing sizing, and rim width
Even More Frame Details
Excess grams must die
For every build above the base spec option, we replace every single steel bolt with either titanium or aluminium, depending on its job. All steel mounting screws are replaced with either plastic blanking screws are micro grub screws (to keep all mounting threads clean and corrosion-free). While this process doesn’t drop kilos off the bike, why drag around dozens of steel bolts if you don’t need to?
Frame facing & preparation
Each frame and fork is prepared (alignment checked, head tube reamed, BB shell faced, fork crown faced, front and rear disc mounts faced) to ensure that all components fit as perfectly as possible. This minimises the chances of clicks and creaks, makes the bearings last longer and makes the brakes work as quietly and powerfully as possible.
Seatpost specs
Standard round 27.2mm, because it’s just plain sensible. If you damage the original, you can go to any shop and buy another one.
At Gothic Cycles, we’re not trying to lock you into any proprietary aspects – our bikes are as user-friendly as it gets.
Headtube / cable routing
We can create solutions for almost any request. (Well, not really, but let’s pretend.)
We use the best quality steel bearings we can buy to ensure a long, trouble-free service life.

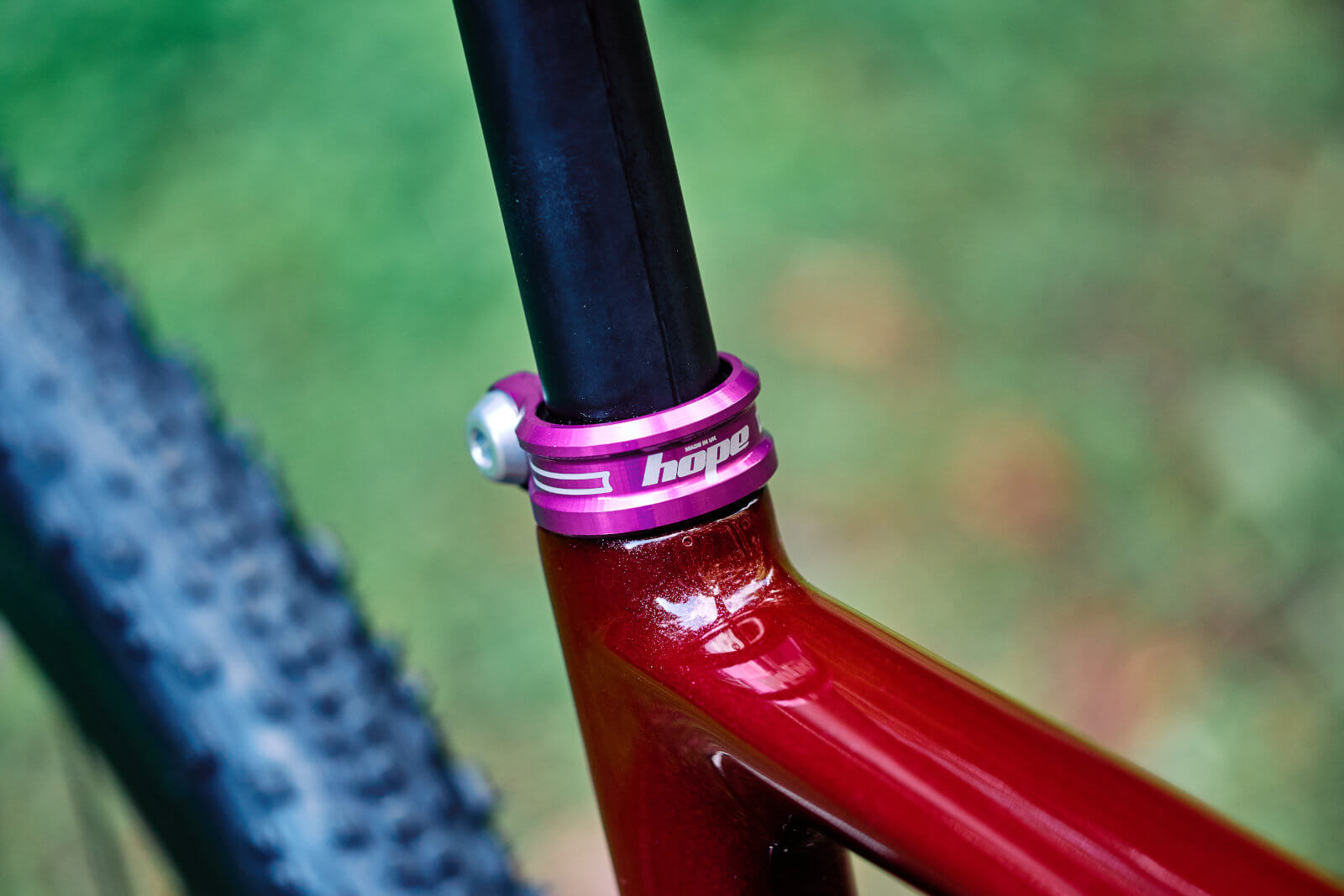

Seat clamp specs
Standard round 31.8mm.
We do this for the same reason as the post: it works perfectly well, it allows us to add colour accents, and if you break the original, every shop will have something in stock for you.
Derailleur hanger specs
Gothic-specific.
If you’re interested in reading about hangers (and why wouldn’t you be?), this derailleur hanger blog post is one of our most popular pages of all time.

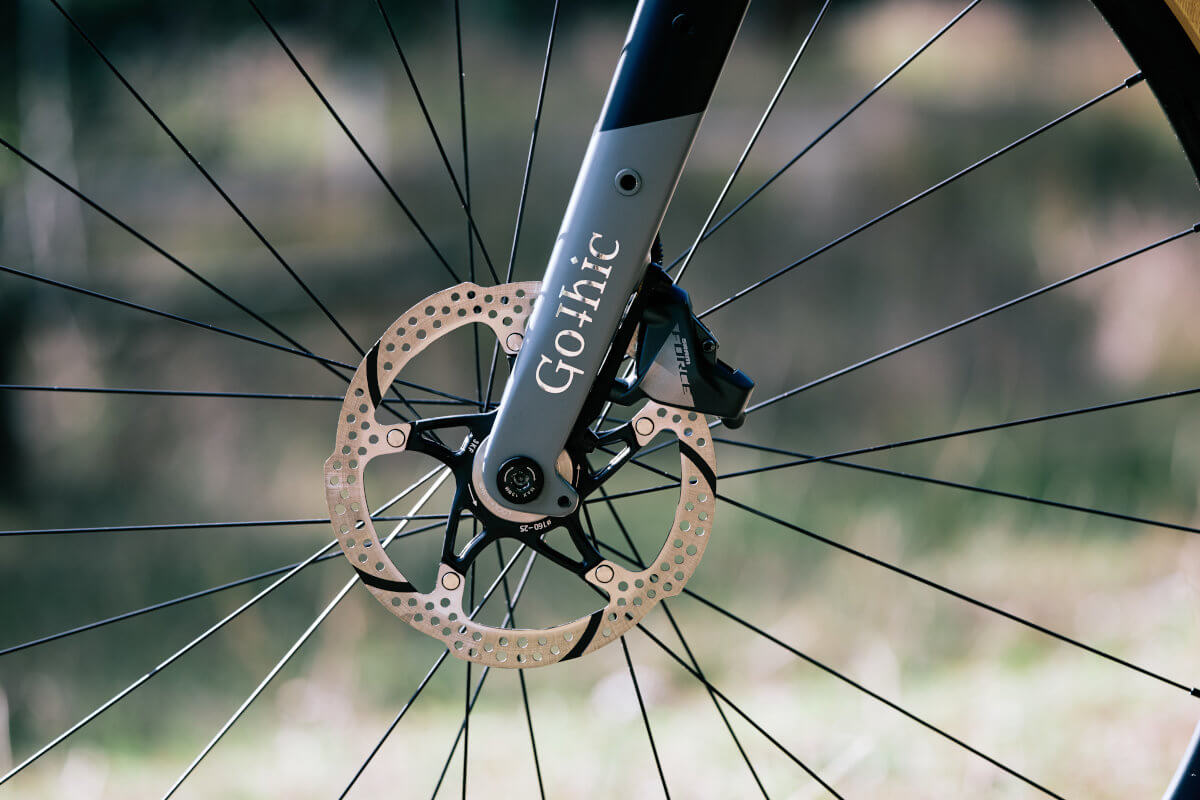

Disc mount specs
The Aix runs flat mount disc mounts.
Why? …
… errr …
…because we can’t mount the calipers, otherwise.
Dropout specs
12×100 front.
12×142 rear.
That’s it, that’s the dropout stuff.
Kill your PBs. Resurrect your ambitions.
